Writing documentation

Issues describe work that is happening. Documentation describes how things are: runbooks, decisions, onboarding pages.

That is what the knowledge base is for. It's a wiki: pages nest inside pages, anyone who can read a page can edit it, and articles link to the issues and people they are about.

Spaces, articles and sub-pages

  • A space is a shelf, such as Engineering, Product, Design or Operations. It has a name, an icon, a colour and a one-line description.
  • An article is a page in a space.
  • Any article can have sub-pages, as deep as you like. For example, a handbook at the top and its chapters beneath it.

The knowledge base home: search, a card per space, and the most recently updated articles The knowledge base home.

Each card shows a space's colour, description and article count. Below, Recently updated lists the latest changes with space and author.

Creating a space

Click the New space tile, enter a name and description, and pick an icon and colour.

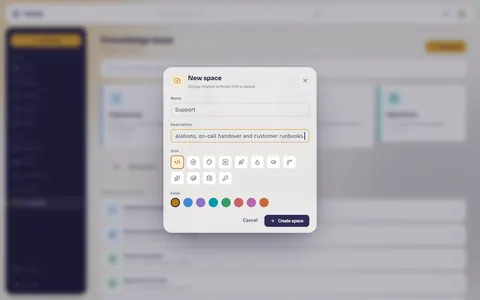

The New space dialog with a name and description filled in The New space dialog.

Create space only becomes active once there is a name. The space then appears on the grid right away.

Prefer a few broad spaces, such as one per team or discipline. One per project rarely fits, because topics outlive projects.

A space can only be deleted while it is empty

Delete space is only offered on a space with no articles. While pages are still in it, including pages you cannot see, Hinata refuses to delete it. Move or delete its pages first.

Write an article

Press New article, on the home screen or in the article view next to All spaces.

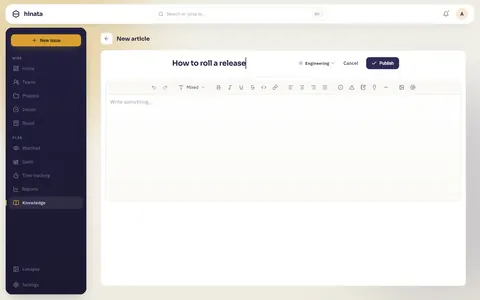

The article editor on a new page, with a title typed and the body still empty The editor on a new page.

  • Title above the toolbar. It becomes the heading, the row in the tree and what people search for. "Release checklist" is findable, "Notes" is not.
  • Space picker next to it. You can change it at any time.
  • Visible to: Only me, a Project or a Team. A new page stays private until you put it into a project or team. On sub-pages this reads Same as the page above.
  • Button on the right: Publish on new pages, Save when editing.

There is no draft state.

Start it as a sub-page

Hover the parent in the tree and press the + (Add sub-page). The article is created in the right place.

A first page, start to finish

  1. Open Knowledge in the sidebar and press New article.
  2. Title it for the question it answers: "How to roll a release", not "Release".
  3. Pick the space from the dropdown next to the title, and under Visible to the project or team that should read the page.
  4. Write the body with Heading 2 per stage, a numbered list for the steps and a Warning panel for what can go wrong.
  5. Type @ and pick the related ticket.
  6. Press Publish.

The page is now searchable by title and text, shows up in Recently updated, and the issue lists it under Documented in.

The editor

You write with formatting applied as you go, with no markup and no preview. The toolbar:

GroupButtons
HistoryUndo, Redo
Text styleA dropdown: Body text, Heading 1 to 3, Quote, Bullet list, Numbered list, Task list, Code block
FormattingBold, Italic, Underline, Strikethrough, Inline code, Link
AlignmentLeft, Centre, Right, Justify
BlocksInfo panel, Warning, Note, Tip, Divider
InsertInsert image, Mention / link (@)

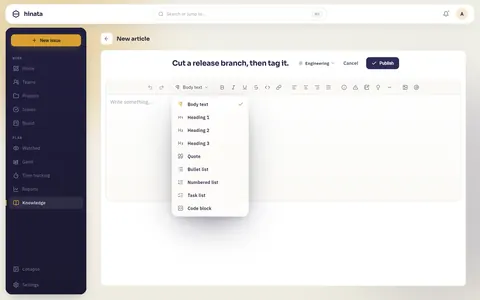

The Text style dropdown open over the article editor The Text style dropdown with nine styles.

  • Text style is a dropdown because a line can only have one style. A tick marks the current one. If a selection spans several, it reads Mixed.
  • Coloured panels (Info, Warning, Note, Tip) make important points stand out.
  • Task lists have real checkboxes and are meant for checklists. If items need owners and dates, use issues.
  • Code blocks carry a language and are coloured to match.

Select text and the tools come to you

Highlight text and a small toolbar appears above it with the most common formatting and the link editor. You type the address right above the selected words.

Keyboard shortcuts

ShortcutDoes
⌘B / Ctrl+BBold
⌘I / Ctrl+IItalic
⌘U / Ctrl+UUnderline
⌘Z / Ctrl+ZUndo
⇧⌘Z / Ctrl+YRedo

There is no shortcut for coloured panels or @. You just type @.

  • Links come from the toolbar or the selection toolbar. Remove link takes one off. Unsafe addresses are rejected.
  • Images are uploaded with the image button and land at the cursor. Resize with the corner handles and add a caption below. PNG, JPEG, GIF and WebP are accepted. SVG is not, because it can carry code. The size limit is set by whoever runs the server, see Object storage.
  • Dividers are best used sparingly. Headings also feed the outline.

Saving an empty page over a full one is blocked

If loading goes wrong, the editor won't save an empty body over existing content, and tells you why.

Type @ in the text or press the @ button at the end of the toolbar. Pick a suggestion and it becomes a chip, a real link.

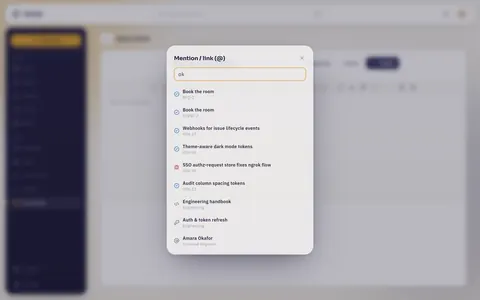

The Mention / link picker open over the article editor The picker for issues, articles and people.

The list narrows as you type. Each row shows an icon for its kind and the issue key or space. In the example, ok finds four issues, two articles and Amara Okafor.

  • Issue: shows type, key and current title, and opens on click. Hover (desktop) or long-press (phone) to see status, priority and assignee.
  • Article: shows the page's icon and title.
  • Person: shows avatar and first name, even if their job title changes.

If the target disappears, the chip turns red.

Typing HIN-42 by hand is just text

Only chips inserted with @ are links. Typed text opens nothing and doesn't appear in Linked issues.

Documentation that knows what it describes

Chips work in both directions, automatically:

  • Linked issues at the foot of an article lists every issue it mentions, with current status.
  • Documented in on an issue lists every article that links to it.

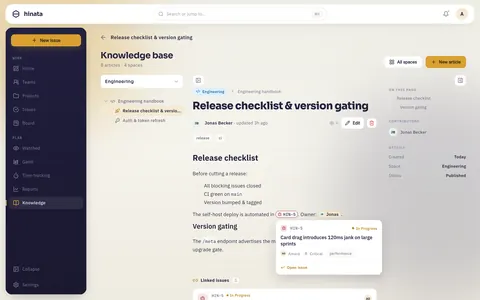

An issue chip in an article body with its hover preview open An issue's preview card.

The preview card shows status, title, assignee, priority and label, with Open issue at the bottom.

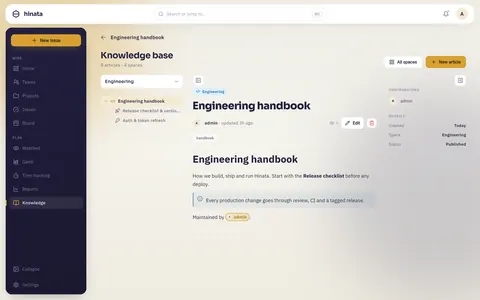

An article with its space tree on the left, the body in the centre, and contributors and details on the right The article view.

Finding your way around an article

Three columns. Fold away the side columns with the toggles on their inner edges.

  • Left: space picker and page tree. The current article is highlighted.
  • Middle: space chip, title, author, last update, labels and body. Edit and delete sit next to the byline.
  • Right: On this page (outline, only with more than one heading), Contributors, Related articles (pages this one links to) and Details (created, space, status).

Writing on a phone

  • The toolbar scrolls sideways, with Undo and Redo first.
  • The page tree lives in a drawer, so the article gets the full width.
  • Long-press a chip for its preview card.

See On your phone.

Reorganising: drag, nest, move

  • Drag a page onto another to nest it. Sub-pages move with it, and everything then lives where the new parent lives.
  • Drop it on the root zone at the top of the tree to move it to the top level.
  • Different space: open the page, press Edit and change the space in the header.
  • Different project or team: open a top-level page, press Edit and change Visible to. Its sub-pages come along. Only the author can make a page private.

Moving a page to another place needs authority over the place it is in now. A project page can be moved by the project's leads and by the Team-Admins of a team that owns the project. A team page can be moved by the team's admins, a private page by its author. If someone filed a sub-page under it from another place, that sub-page stays where it is when the page moves and becomes a top-level page there. One person's private page never moves along with another person's page.

Hovering a row shows + (Add sub-page) and the menu.

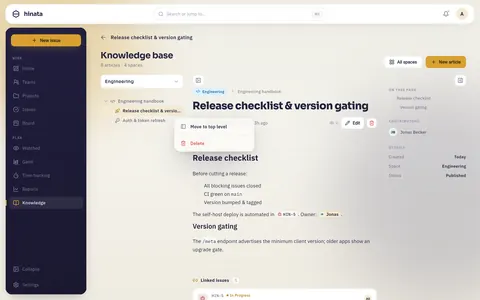

The row menu of a page in the knowledge tree The menu of a page in the tree.

  • Move to top level takes the page out of its parent without dragging.
  • Delete removes the page. If it has sub-pages, the entry reads Delete (move sub-pages first) and does nothing.

Deleting is permanent, and parents are protected

Delete asks for confirmation and names the article. There is no undo and no wastebasket. Pages with sub-pages can only be deleted once those are moved.

Who can see and change what

Visible toWho reads the page
ProjectEveryone who sees the project
TeamThe team's admins and the members the team opened the page to
Only meOnly you, the author
  • Team-Admins decide per member which of the team's pages they read: None (the default), All pages of the team or Selected pages. A selected page includes everything below it.
  • Sub-pages come along when their parent moves. Sub-pages that were filed from another place are the exception. They stay where they are.
  • Other team members see how many pages a colleague was given, but not which ones. Team-Admins see which.
  • Private pages are part of your personal data. They are included in your data export and are deleted with your account. That includes pages everyone could read before the update that are now private to their author. If an important page should stay, move it into a project or team before the account is deleted.
  • Nobody else reads a page, administrators included. What you may not read does not show up in search or in lists.
  • If a sub-page is open to you but its parent is not, it shows at the top of your tree.

Project and team access: Projects and teams.

After the update

Pages that belonged to no project and no team before are now private to their authors. Existing team members only read their team's pages once a Team-Admin opens them. Pages that hung under a page from another place are now top-level pages in their own place. Pages whose author was deleted before the update stay stored, but nobody can read them. What happens to them is up to the operator.

Anyone who can read a page can edit or delete it

There is no read-only mode. Only parent pages with sub-pages are protected from deletion.

Searching the knowledge base

  • Search field on the knowledge home: article titles, space names and labels.
  • ⌘K palette: also the text inside articles, plus everything else in Hinata. See Finding things.

Labels appear as chips under the title, and both searches match them. A label like runbook brings up a whole category. The editor has no label field yet, so labels usually come from whatever created the article.

What belongs here, and what belongs in an issue

Write an article when…Write an issue when…
It stays true after the work is doneIt is done at some point, and then it is over
The reader is someone who arrives laterThe reader is someone doing it now
It describes how a thing worksIt describes a change to be made
Nobody needs to be assigned to itSomebody needs to own it and finish it

Rule of thumb: if the page needs a status, it's an issue. If it needs a last reviewed date, it's an article.

Keeping a page current

The byline, Contributors and Details show the author, last update and creation date. There is no revision history. So:

  • Edit selectively instead of replacing the whole text.
  • When a page is outdated, say so at the top and link the page that replaces it, instead of deleting it.

If Recently updated hasn't moved in months, the documentation has probably fallen behind.

Habits that keep a knowledge base alive

  • One page, one subject. Otherwise split it into a page and a sub-page.
  • Link the issue instead of retelling it. An @ chip stays current.
  • Write the warning first, in a coloured panel near the top.
  • Fix what you notice. You can edit any page you can read.
  • Use real headings. They build On this page.
